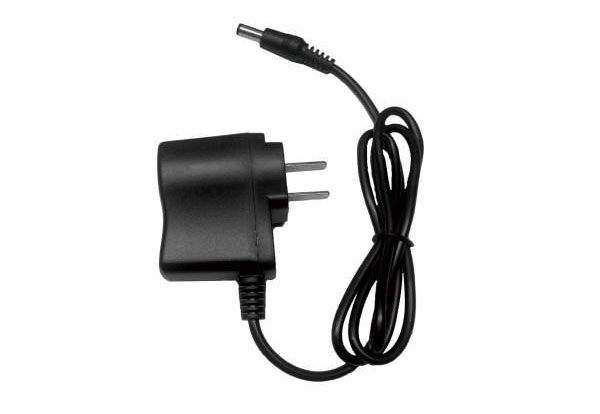

6V 1A power adapter

6V 1A power adapter 6V 1A power adapter

MODEL: FTO-0601000P

AC input 100-240VAC

Output: 6VDC 1A

Over-voltage, over-current short-circuit protection

Output low ripple and noise


6V 1A power supply
6V 1A power supply drawing

6V 1A power adapter FEATURES

·Input Voltage Range: 90Vac -264Vac

·No load power consumption<0.5W

·Input Current Harmonic: EN60950-1

·Output voltage Ripple and Noise: <120mVp-p

·Output 6Vdc 1A

·Protections: Short circuit / Over load / Over voltage

·Fully enclosed plastic case

6V 1A power adapter ELECTRICAL CHARACTERISTICS

·Efficiency: >= 72%

·Turn-On Delay Time:300mS

·Load Regulation: 5% max.

·Hold-up Time: 5mS min.

·Dielectric Strength:(Hi-Pot):Between AC input and secondary applied AC 3.0kV,test time 1 minute, and cut off current shall be less than 10 mA.AC 3.0kV,test time 10 Sec.for mass production.

·Insulation Resistance: Between AC input and secondary applied 500Vdc,test time 1 minute. 500Vdc,test time 10 Sec.for mass production. ≥100MΩ

6V 1A power adapter ENVIRONMENTAL

·Operating Temperature: 0 to 50oC

·Storage Temperature: -40 to 85oC

·Relative Humidity: 5 to 95%

6V 1A power adapter APPLICATION

·Thermal printer,barcode Printer,Dot Matrix Printer,Barcode Scanner, pos Terminal

·Aroma Diffuser,Ultrasonic Aroma Diffuser,Essential oil diffuser,Aromatherapy diffuser,ultrasonic aroma humiodifier
Ultrasonic Humidifier

Here is 5V 1A power adapter.

5V 1A power adapter
