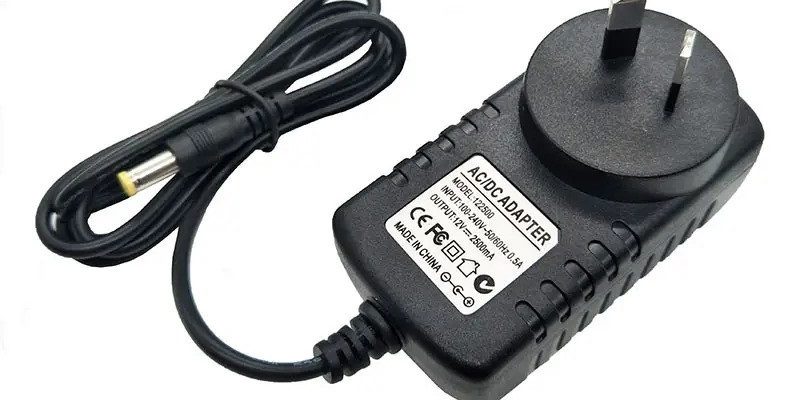

How to Choose the Right AC Adapter

How to Choose the Right AC Adapter

Understanding AC Adapters

An AC adapter, also known as a power adapter or charger, converts AC (alternating current) from your wall outlet into DC (direct current) suitable for electronic devices. It allows you to power your devices by converting high-voltage AC to low-voltage DC.

AC vs. DC Power

AC Power: Alternating current (AC) from your wall outlet changes direction periodically and is suitable for long-distance transmission.

DC Power: Direct current (DC) flows in one direction and provides a constant voltage, which is required by most electronic devices like laptops, smartphones, and cameras. AC adapters convert AC to DC.

Key Factors to Consider When Choosing an AC Adapter

Voltage

One of the most critical factors to consider when selecting an AC adapter is voltage. Voltage is the force that pushes electric current through a circuit. It is measured in volts (V).

Explanation of Voltage

Voltage can be thought of as the pressure that drives electrical current through a conductor. Higher voltage means more potential energy to move electrons through a circuit. In the context of AC adapters, voltage must match the requirements of your device to ensure proper operation.

Importance of Matching the Device’s Voltage

Matching the voltage of the AC adapter to your device’s requirements is crucial. Using an adapter with the correct voltage ensures that your device receives the proper amount of power to operate efficiently and safely.

Risks of Using the Wrong Voltage

Using an adapter with a voltage that is too high can damage your device, potentially causing it to overheat or short-circuit. Conversely, using an adapter with a voltage that is too low can result in insufficient power, leading to poor performance or failure to operate.

How to Find the Voltage Requirement of Your Device

To determine the correct voltage for your device, you can check the following:

  1. Device’s Label: Most electronic devices have a label, usually found on the back or bottom, indicating the voltage requirement. Look for a small plate or sticker that lists the input voltage.
  2. User Manual: The user manual that came with your device will also provide information on the required voltage. This is usually found in the specifications section.
  3. Original AC Adapter: If you still have the original AC adapter, it will typically list the output voltage. Ensure this matches the input voltage requirement of your device.

Current (Amperage)

Matching Current: Current, measured in amperes (A), indicates the flow of electric charge. The adapter’s current rating should match or exceed your device’s requirement.

Risks of Incorrect Current: An adapter with insufficient current can lead to poor performance or device failure, while an adapter with higher current is safe as devices draw only what they need.

Finding Current Requirements:

  1. Device’s Label: Usually near the power input port.
  2. User Manual: Check the specifications section.

Polarity

Understanding Polarity: Polarity in DC circuits has positive (+) and negative (-) terminals. Correct polarity alignment is essential to prevent device damage.

Risks of Reversed Polarity: Reversed polarity can damage internal circuitry, cause overheating, or result in operational failures.

Identifying Polarity:

  1. Polarity Symbols: Look for symbols near power ports or on the adapter.
  2. User Manual: Check for detailed information.

From the label, we can see that this adapter has an output voltage of 18.5V DC at 1.1A, with a center-positive polarity.

Key Factors of Choosing an AC Adapter

Connector Size

AC adapters come with a variety of connector types and sizes, each designed for specific devices. Some common connector types include:

    • Barrel Connectors: These are cylindrical connectors commonly used in laptops, cameras, and other electronic devices. They come in various diameters and lengths. Here are some common DC connector sizes used for AC adapters:
    • 5.5mm x 2.1mm – This is one of the most common sizes, often used for various electronics including routers, LED strips, and monitors.
    • 5.5mm x 2.5mm – Another common size used for various devices such as CCTV cameras, audio equipment, and some laptops.
    • 3.5mm x 1.35mm – Found on smaller devices like certain routers, audio equipment, and some LED lighting setups.
    • 4.0mm x 1.7mm – Used for some types of set-top boxes, portable DVD players, and some routers.
    • 5.5mm x 1.7mm – Used in certain models of external hard drives, older routers, and some audio equipment.
    • 6.3mm x 3.0mm – Often used for higher-power devices like some laptops and monitors.
    • 7.4mm x 5.0mm – Typically used for Dell laptops and certain monitors.
    • 7.9mm x 5.55mm – Used primarily for some Lenovo laptops and certain other devices.

AC adapter connectors

Proprietary Connectors:

Some manufacturers use unique connector types specific to their devices, which can make finding replacements more challenging. Here are some types of Proprietary Connectors used for DC adapters and other applications:

DIN Pin Connectors:

  1. 3-Pin DIN – Commonly used for audio and MIDI equipment.
  2. 5-Pin DIN – Also known as 180° DIN, often used for MIDI connections and older computer keyboards.
  3. 7-Pin DIN – Used in some specialized audio and video equipment.
  4. 8-Pin DIN – Found in some older computer peripherals and audio equipment.
  5. 13-Pin DIN – Used in automotive and industrial applications.
  6. DIN 41524 – Standard for audio signals.
  7. DIN 45322 – Used for connecting telephone systems.
  8. Mini-DIN – Smaller version, used for S-video and other computer peripherals (e.g., PS/2 ports for keyboards and mice).

Aviation Plugs:

  1. GX12 – Also known as M12 connectors, typically used in industrial automation.
  2. GX16 – Also known as M16 connectors, used for various industrial and aerospace applications.
  3. GX20 – Larger than GX16, used in heavy-duty industrial applications.
  4. MS3102 (Type 97) – Used in military and aerospace applications.
  5. LEMO Connectors – Precision push-pull connectors used in medical, industrial, and military applications.
  6. Amphenol Circular Connectors – Widely used in harsh environments, including military and aerospace.

Step-by-Step Guide to Choosing the Right AC Adapter

Step 1: Identify Device Specifications

The first step in choosing the right AC adapter is to identify your device’s power requirements. This information is usually found on the device itself or in the user manual.

  • Check the Device Label: Look for a label on the back or bottom of the device. This label often includes important details such as voltage (V), current (A), and polarity.
  • Consult the User Manual: If the label is not clear or accessible, the user manual will have a section detailing the power requirements.
  • Example Images and Explanations: For instance, a label might read “Input: 12V 1.5A,” indicating that the device requires 12 volts and 1.5 amperes of current.

Step 2: Match the Voltage

  • Detailed Instructions on Matching the Voltage: Ensure that the output voltage of the adapter matches the voltage requirement of your device exactly. For example, if your device requires 12V, the adapter should also output 12V.
  • Examples of Correct and Incorrect Matches:
    • Correct Match: Device requires 12V, and the adapter provides 12V.
    • Incorrect Match: Device requires 12V, but the adapter provides 9V or 15V. This can result in underpowering or burn the device.

Step 3: Ensure Sufficient Current

The current (amperage) provided by the adapter must match or exceed the device’s requirement.

  • Detailed Instructions on Matching the Current (Amperage): Check the device’s label or manual for the required current. The adapter’s current rating (measured in amperes, A) should be equal to or greater than the device’s requirement.
  • Examples of Correct and Incorrect Matches:
    • Correct Match: Device requires 1.5A, and the adapter provides 1.5A or more (e.g., 2A).
    • Incorrect Match: Device requires 1.5A, but the adapter provides only 1A. This can cause the device to malfunction or the adapter to overheat.

Step 4: Check the Polarity

  • Detailed Instructions on Identifying and Matching Polarity: Most DC adapters have polarity symbols indicating the positive and negative connections. Match these symbols to the device’s polarity requirements.
  • Visual Aids for Polarity Symbols: Typically, a diagram like this is used:
    • Center positive: ⊕——●——⊖
    • Center negative: ⊖——●——⊕
  • Importance: Ensure the adapter’s polarity matches the device’s polarity exactly to prevent damage.

Step 5: Verify Connector Size

Using the correct connector size ensures a secure and functional connection.

  • Detailed Instructions on Measuring and Matching the Connector Size: Measure the diameter and length of the original connector. Use a digital caliper for precision or refer to the device’s specifications.
  • Examples of Different Connector Types:
    • Barrel Connectors: Commonly used in many electronics, varying in diameter and length.
    • USB Connectors: Types include USB-A, USB-B, USB-C, and Micro-USB, each with different shapes and sizes.
    • Proprietary Connectors: Some devices have unique connectors, requiring careful matching.

Tips for Testing and Verifying Your AC Adapter

Using a Multimeter to Check Voltage and Polarity

A multimeter is an essential tool for testing and verifying your AC adapter’s output.

  • Checking Voltage:
    1. Set the Multimeter: Turn the dial to the DC voltage setting.
    2. Connect the Probes: Insert the black probe into the common (COM) terminal and the red probe into the voltage (V) terminal.
    3. Measure the Output: Place the black probe on the outer part of the adapter’s connector (typically the ground) and the red probe on the inner part (typically the positive terminal).
    4. Read the Display: Compare the reading with the adapter’s rated output voltage.
  • Checking Polarity:
    1. Set the Multimeter: Again, set the dial to the DC voltage setting.
    2. Test the Polarity: Place the black probe on the known ground terminal and the red probe on the positive terminal. If the multimeter shows a positive voltage, the polarity is correct. If it shows a negative voltage, the polarity is reversed.

Ensuring a Secure and Stable Connection

A secure connection ensures that your device receives a consistent power supply.

  • Check the Fit: Ensure that the adapter’s connector fits snugly into the device’s power port. A loose connection can cause intermittent power issues.
  • Inspect for Damage: Look for any signs of wear or damage on the adapter’s cable and connector. Replace if necessary.
  • Avoid Strain: Make sure the adapter’s cable is not stretched or under strain, which could damage the internal wires.

Safety Precautions While Testing

  • Turn Off the Device: Before connecting or disconnecting the adapter, turn off the device to prevent electrical shorts.
  • Avoid Water: Ensure your testing environment is dry to avoid the risk of electrical shock.
  • Use Insulated Tools: When handling electrical equipment, use tools with insulated handles to protect against accidental shocks.

FAQs About AC Adapters

What Happens If I Use an Adapter with Higher Voltage?

Using an adapter with a higher voltage than required can cause:

  • Overheating: The device might overheat, potentially damaging internal components.
  • Component Damage: Sensitive circuits can be fried by excessive voltage, leading to permanent damage.

Can I Use an Adapter with a Higher Current Rating?

Yes, using an adapter with a higher current rating is generally safe:

  • Higher Current Capacity: The adapter can provide the required current without overheating.
  • Device Safety: The device will only draw the amount of current it needs, so there is no risk of overcurrent damage.

How Do I Know If My Adapter Is Faulty?

Signs of a faulty adapter include:

  • No Power: The device does not power on when connected to the adapter.
  • Intermittent Power: The power supply is inconsistent, causing the device to turn on and off.
  • Overheating: The adapter becomes excessively hot during use.
  • Physical Damage: Visible damage to the cable, connector, or adapter casing.
